MSTECH Europe

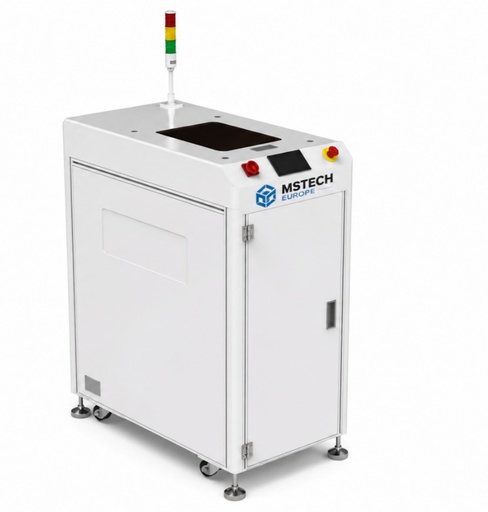

Classic-INV-460
Inverter conveyor for bare boards, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 650x1076x1300

Application
This unit is used to inverter flip /PCB’s ( 180 °) for double side process.

Features

• Panasonic PLC program control

• By-pass mode, inverter mode selectable

• Pneumatic stopper to keep the PCB in position during inverting

• Motorized conveyor width adjustment (optional).

• LED signal tower

• Buzzer

• Suitable for boards with many components on the bottom side

• Closed –loop stepper motor providing the rotating driving power

• SMEMA compatible

MSTECH Europe

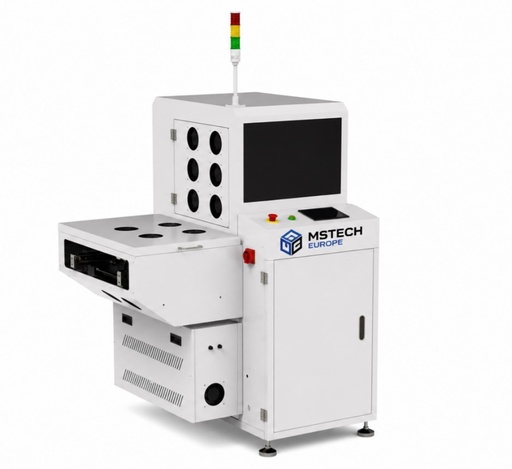

Classic-CBUF-460 - 25P
Vertical buffer, 25 PCS, with infeed conveyor; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1150x1100x1700

Application
This vertical buffer is designed to have the function as FIFO/ LIFO and by-pass functions, which can be located between SMT machines to improve the working efficiency by buffering. This system is with the built-in magazine which has the special driving ability in each slot to transfer the boards to downstream system when the boards are called for. (Built-in magazine is not exchangeable).

This vertical buffer is equipped with the cooling fans, and the PCB staying time in the buffer rack are available to set up for cooling length. It means even PCBs must reach the cooling time, and then when the downstream machine ask for PCB, the buffer will release the PCB .

Features

• PCB buffer capacity: 25 PCS or 20 PCS

• Working mode:FIFO( first in first out)/ LIFO( last in first out)/By-pass mode

• Infeed conveyor as standard configuration

• Cooling fan: total 16 groups

• Cooling time length: setup in the software.

• Conveyor width adjustment: motorized type

• Control method: PLC+ touch screen control+Taiwan servo motor

• Machine working language: English

• Threshold signal to protect the boards in upstream reflow oven: Standard

• PCB transfer method: 4mm ESD Flat belt to handle PCBs

• Magazine lifting system: precision servo motor system and servo driving system.

• Lifting platform with PCBs weights handling capacity: above 100kg

• Step pitch selectable: 1/2/3 pitch Step by software setting;

• PCB size available: 530mm * 460mm ( L*W) as Max.

• Indexing pitch: 22mm

• PCB transfer flow direction: Left to right

• Conveyor width adjustment: motorized type

• Conveyor fixed rail: Front rail

• Conveyor transfer heights: 900mm+/-50mm

• Conveyor speed: 10m/min adjustable

• Conveyor rail material: aluminum with special hardness treatment for long time usage and the strong PCB holding ability;

• Machine working state display: LED signal tower + audible alarm

• Robust lead screw rod and guide line rod to guarantee the heavy duty loading;

• Safety standard: CE certificates

• Safety cover with interlock functions

• Power: AC220V,50/60 HZ, 1 phase

• Air Pressure: 4-5kgf/cm2

• Machine communication: SMEMA interface

MSTECH Europe

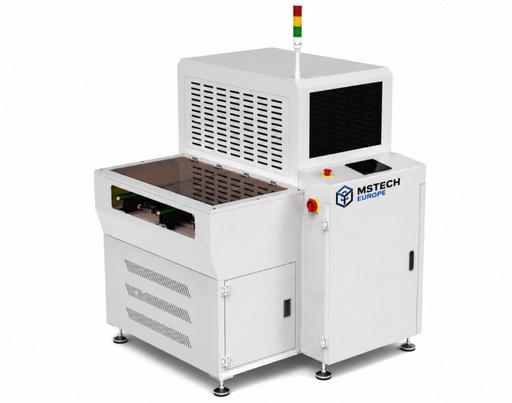

Classic-BUF-460 - 25P
Vertical buffer, 25 PCS, without infeed conveyor; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 750x1100x1700

Application:

This vertical buffer is designed to have the function as FIFO/ LIFO and by-pass functions, which can be located between SMT machines to improve the working efficiency by buffering.

This system is with the built-in magazine which has the special driving ability in each slot to transfer the boards to downstream system when the boards are called for. ( Built-in magazine is not exchangeable).

Features

• PCB buffer capacity: 20 PCS in each lane ( 40PCS at dual lane)

• Working mode:

FIFO( first in first out)

LIFO( last in first out)

By-pass mode

• Infeed conveyor as standard configuration

• Conveyor width adjustment: automatic adjust ( by software input the boards width information;

• Control method: PLC+ touch screen control+Taiwan servo motor

• Machine working language: English

• Threshold signal to protect the boards: Standard

• PCB transfer method: 4mm ESD Flat belt to handle PCB

• Magazine lifting system: precision servo motor system and servo driving system.

• Lifting platform with PCBs weights handling capacity: above 100kg

• Step pitch selectable: 1/2/3 pitch Step by software setting;



• PCB size available:

Dual lane mode

L 50 mm × W 50 mm ～ L 530 mm × W 375 mm

Single mode：

L 50 mm × W 50 mm ～ L 600 mm × W 510 mm

• R1 fixed, R2-R3-R4 moveable

• PCB weights: Max.2.0kg/PCS

• PCB thickness: Max.2.5mm, Min.0.6mm

• Indexing pitch: 30mm

• SMEMA signa

• PCB transfer flow direction: Left to right

• Conveyor width adjustment: motorized type

• Conveyor fixed rail: Front rail

• Conveyor transfer heights: 900mm+/-50mm

• Conveyor speed: 10m/min adjustable

• Conveyor rail material: aluminum with special hardness treatment for long time usage and the strong PCB holding ability;

• Machine working state display: LED signal tower + audible alarm

• Robust lead screw rod and guide line rod to guarantee the heavy duty loading;

• Safety standard: CE certificates

• Safety cover with interlock functions

• Power: AC110V,50/60 HZ, 1 phase

• Air Pressure: 4-5kgf/cm2

• Machine communication: SMEMA interface

• Power supply: 220V,single phase,50/60Hz

MSTECH Europe
Classic-NGC-460 - 5P
NG reject conveyor, high end, 5 PCS capacity; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application
This unit is used to automatically separate good boards and NG boards while allowing visual inspection for NG PCBs without any interruption on Good Board flow.It can work with any tester like AOI,SPI.

Features

• Panasonic PLC program control

• Touch screen operation panel

• By-pass mode, inspection,NG reject mode selectable

• Conveyor width adjustment by using hand crank.

• Center PCB stop position

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• Total 5 NG PCBs stock capability

• SMEMA compatible

MSTECH Europe

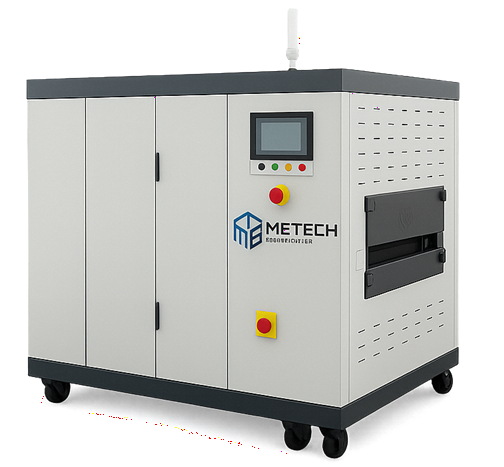

Classic Mecury Oven

The Mercury oven is designed for efficient and uniform curing of coatings, adhesives, and encapsulants in SMT and electronics manufacturing. It ensures controlled heat distribution for reliable curing performance, improving product quality and consistency. With adjustable conveyor speed, it easily adapts to different curing profiles and production requirements, making it suitable for continuous inline processing across a wide range of electronic assemblies.

MSTECH Europe
Classic-LC10D-460
Linking conveyor / inspection conveyor, 1000mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-LC15D-460
Linking conveyor / inspection conveyor, 1500mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-LC5-460
Linking conveyor / inspection conveyor, 500mm length; Motorized width adjustment; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 500x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-LC10-460
Linking conveyor / inspection conveyor, 1000mm length; Motorized width adjustment; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-LC15-460
Linking conveyor / inspection conveyor, 1500mm length; Motorized width adjustment; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-LC5-460
Linking conveyor / inspection conveyor, 500mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 500x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe

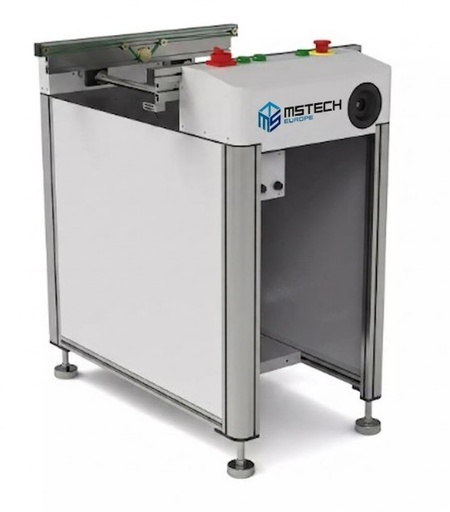

Classic-CLC5-460
Cooling Linking conveyor 500mm length; Motorized width adjustment; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 500x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe

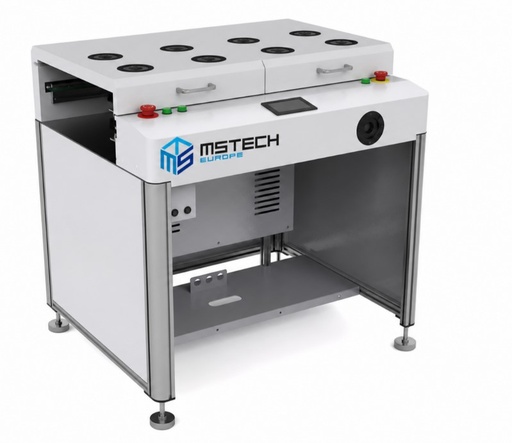

Classic-LC10I-460
Inspection Linking conveyor / inspection conveyor, 1000mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-LC10NG-460
Linking conveyor / inspection conveyor, 1000mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-LC15NG-460
Linking conveyor / inspection conveyor, 1500mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-CLC10-460
Cooling Linking conveyor, 1000mm length; Motorized width adjustment; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe

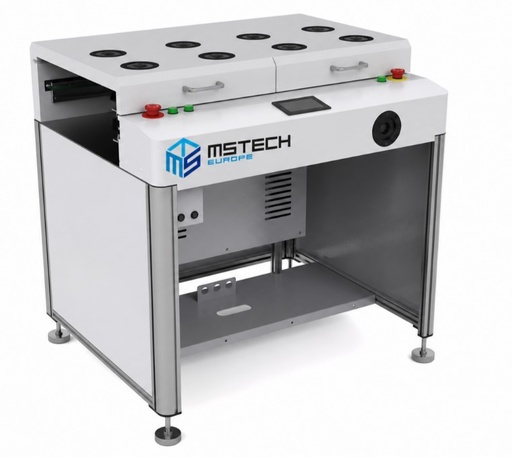

Classic-CLC15-460
Cooling Linking conveyor, 1500mm length; Motorized width adjustment; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x950x1250
Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-ST-460
Shuttle conveyor, 630mm travel length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x650x1250

Application

Shuttle Conveyor /Traverser is used to redirect flow of PCBs into different channels in a production line.It is designed to shuttle PCB's to next process. The conveyor can collect PCB's from two lines to one line/ distribute PCB's from one line to two lines.

Features



• Mitsubishi PLC +Screen touch panel control;

• Closed loop stepper motor providing the accurate transfer

• Working method:

• 1). distribute the boards from one line into two line.
2). Collect the boards from two line into one line.

• Two working modes are selectable in the software.

• Conveyor width adjustment by motorized and software input automatic width adjustments.

• Shuttle speed setting by software.

• Transfer direction: right to left.

• Cycle time: Depends on traversing distance

• Number of Cart: Sigle head transportation

MSTECH Europe

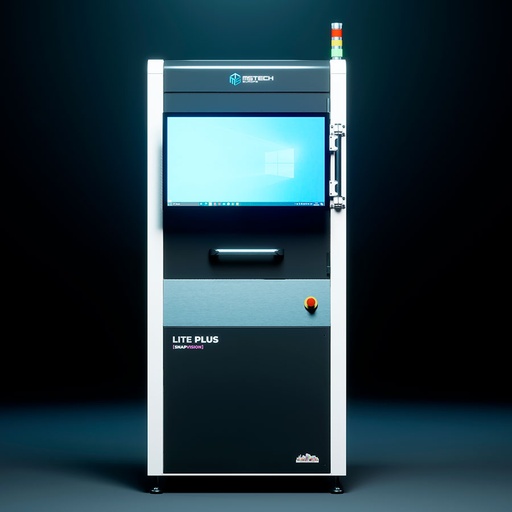

LITE PLUS [SNAP VISION] [SNAP FLIP]

MULTI-PURPOSE
VISION SYSTEM FOR
INTEGRATION INTO
AN EXISTING LINE

Super-fast 2D AOI/ACI inspection
and image analysis with advanced
capabilities, including film thickness
measurement, for coating, dispensing,
component insertion, THT, and wave
soldering process lines.

Features :
■Resolution standard down to 40 um.
■Standard FOV up to 530 x 400 mm.
■Intuitive programming UI.
■Complete inspection time below
than 4 sec. (Depending on FOV).
■Traceability reading while inspection.
■Code Reading: DataMatrix, QR codes.
■UV traceable.
■Thickness trend capability.
■Light source: multi-LED illumination.
■No periodical calibration of camera needs.
■AI based diagnostic.
■Industry 4.0 MES/FIS
and data sharing.

MSTECH Europe

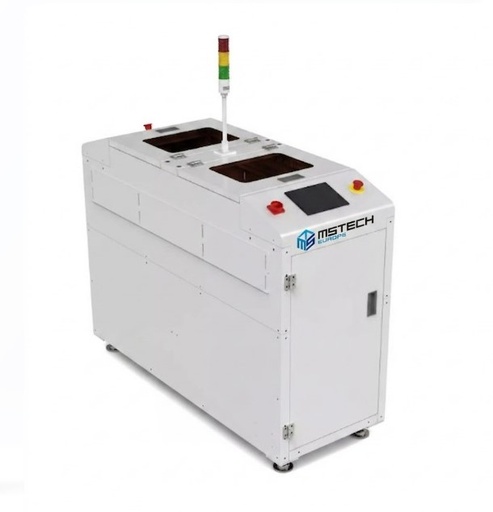

Classic-STD-460
Shuttle conveyor, 630mm travel length, Dual transfert car; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x650x1250

Application

Shuttle Conveyor /Traverser is used to redirect flow of PCBs into different channels in a production line.It is designed to shuttle PCB's to next process. The conveyor can collect PCB's from two lines to one line/ distribute PCB's from one line to two lines.

Features
• Panasonic PLC +Screen touch panel control;

• Closed loop stepper motor providing the accurate transfer

• Working method:

• 1). distribute the boards from one line into two line.
2). Collect the boards from two line into one line.

• Two working modes are selectable in the software.

• Conveyor width adjustment by motorized and software input automatic width adjustments.

• Shuttle speed setting by software.

• Transfer direction: right to left.

• Cycle time: Depends on traversing distance

• Number of Cart: Sigle head transportation
